LEXUS GS
"F SPORT PARTS"


Driving with the unshakable dignity

Realizing the high speed cruising with its total balance.
Sports parts bringing out every aspect of aerodynamics will show you the unshakable dignity of GS.


Exterior

High-speed cruising with superior aerodynamic performance
Wing-like aero parts that afford stability and smoothness

Front Spoiler

Front Spoiler
A front spoiler that effectively uses the air that flows around the front of the car and generates down force.
Ensures optimal down force and contributes to an improved initial response when you steer the car.



Side Skirts

Side Skirt Optimally corrects the airflow around the rear tires. Passively improves aerodynamic performance and handling stability.



Rear Spoiler

Rear Spoiler Form that does not diminish the overall stylish appeal. We have achieved effective aerodynamic balance by mounting the rear spoiler with front aero spats.



Sports Muffler & Rear Diffuser

Sports Muffler & Rear Diffuser
Four exhausts and a rear diffuser were developed together. They act to draw out downward airflow from the front of the car to generate a stable down force. By using a large fin, we have realized a more stable down force and higher straight running stability.
*The sports muffler and diffuser must be mounted together.

Front Aero Spats

Front Aero Spats
By applying under the engine cover, the rectifying effect of underbody airflow will improve the driving stability.



Performance Damper


Performance Damper
Effectively absorbs deformations, noise and vibrations during driving, significantly improving the driving feel as well as driving stability and comfort.

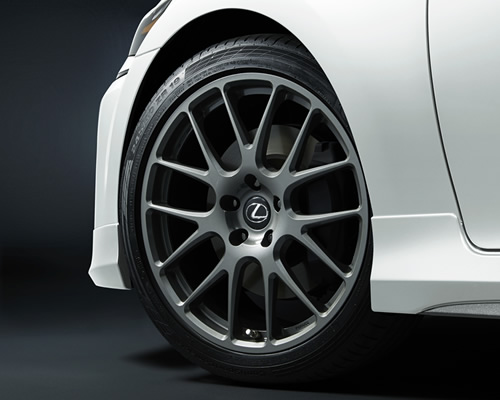

Forged Aluminum Wheel

Alloy Wheel with balance of light weight and rigidity in higher demention.
The high-rigidity wheel shows excellent road holding and reduces the unsprung weight, thus enhancing the riding comfort of the vehicle.


19inch Forged Aluminum Wheel

【A】19 inch Forged Alloy Wheel

Size：Front：19×8.5J inset 45mm、Rear：19×9.0J inset 52mm　
Wheel weight ：8.5J/11.7kg、9.0J/11.9kg
※TPMS（Tire Pressure Monitoring System）applicable
※Separate TPMS bulb or standard equipped TPMS bulb can be used.
※Security wheel nut (for 1 vehicle) will be included when wheels for 1 vehicle are purchased.


19inch Forged Aluminum Wheel

【B】19 inch Forged Alloy Wheel

Size：Front ：19×8.0J inset 45mm　Rear：19×9.0J　inset 52mm　
Weight ：8.0J/9.3kg、9.0J/9.9kg
※TPMS（Tire Pressure Monitoring System）applicable
※Separate TPMS bulb or standard equipped TPMS bulb can be used.
※Normal tire can be used when 19×8.0J、19×9.0J are installed.
※Security wheel nut (for 1 vehicle) will be included when wheels for 1 vehicle are purchased.

LEXUS GS "F SPORT PARTS" List

※ Please note that sales of "F Sports Parts" (TRD) products are limited to Lexus authorized dealers only.

GS350/GS250 Parts List
Description Part Number Qty. List Price GS250/GS350 Remarks
F　SPORT version　L
I　package
Normal
Front Spoiler　※1※2 MS341-30013-A1 1 72,000 ○ 　 White Nova Glass Flake (083)
MS341-30013-C0 1 72,000 ○ 　 Black (212)
MS341-30013-C3 1 72,000 ○ 　 Graphite Black Glass Flake (223)
MS341-30014-NP 1 68,000 ○ 　 Non-painted
Side Skirt　※1※3 MS344-30007-A1 1 88,000 ○ 　 White Nova Glass Flake (083)
MS344-30007-C0 1 88,000 ○ ○ Black (212)
MS344-30007-C3 1 88,000 ○ ○ Graphite Black Glass Flake (223)
MS344-30008-NP 1 83,000 ○ ○ Non-painted
Rear Spoiler　※1 MS342-30007-A1 1 50,000 ○ 　 White Nova Glass Flake (083)
MS342-30007-C0 1 50,000 ○ ○ Black (212)
MS342-30007-C3 1 50,000 ○ ○ Graphite Black Glass Flake (223)
MS342-30008-NP 1 45,000 ○ ○ Non-painted
Front Aero Spats　※1※4 MS349-30000 1 10,000 ○ ○ 　
Performance Damper MS303-30003 1 50,000 △ △ Only for 2WD
Sports Muffler &
Rear Diffuser　※1※5　　　　　　　　		 　 1 280,000 △ △ Only for 2WD
Sports Muffler & rear diffuser must be installed together
Can not be installed with genuine mud guard
Sports Muffler MS153-30005 1 180,000 △ △ Only for 2WD
Sports Muffler & rear diffuser must be installed together
Can not be installed with genuine mud guard
Rear Diffuser MS343-30011 1 100,000 △ △ Only for 2WD
Sports Muffler & rear diffuser must be installed together
Can not be installed with genuine mud guard
Color：Gray metallic、Applicable for all body color
【A】19 inch Forged Alloy Wheel &
Security Nut Set（For 2WD）
※6※7※8　　　		 　 1 530,000 △ △ Only for 2WD
For FR (Qty.1) MS213-00096 2 122,000 △ △ Qty.1　19×8.5J　(inset 45)　11.7kg　
Recommended Tire Size：245/40R19
For RR (Qty.1) MS213-00097 2 127,000 △ △ Qty.1　19x9.0J　(inset 52)　11.8kg　
Recommended Tire Size：265/35R19
Wheel Nut Set MS212-00007 1 32,000 ○ ○ For 1 vehicle - Wheel nut set（With security）
【A】19 inch Forged Alloy Wheel &
Security Nut Set（For AWD）　　		 　 1 520,000 △ △ Only for AWD
For Qty. 1 MS213-00096 4 122,000 △ △ Qty.1　19×8.5J　(inset 45)　11.7kg　
Recommended Tire Size：245/40R19
Wheel Nut Set MS212-00007 1 32,000 ○ ○ For 1 vehicle - Wheel nut set（With security）
【B】19 inch Forged Alloy Wheel &
Security Nut Set（For 2WD）
※6※7※8　　　		 　 1 512,000 △ △ Only for 2WD
For FR (Qty.1) MS213-00038 2 120,000 △ △ Qty.1　19x8.0J　(inset 45)　9.3kg　
Recommended Tire Size：245/40R19
For RR (Qty.1) MS213-00039 2 120,000 △ △ Qty.1　19x9.0J　(inset 52)　9.9kg　
Recommended Tire Size：265/35R19
Wheel Nut Set MS212-00007 1 32,000 ○ ○ For 1 vehicle - Wheel nut set（With security）
【B】19 inch Forged Alloy Wheel &
Security Nut Set（For AWD）
※6※7※8　		 　 1 512,000 △ △ Only for AWD
For Qty. 1 MS213-00038 4 120,000 △ △ Qty.1　19x8.0J　(inset 45)　9.3kg　
Recommended Tire Size：245/40R19
Wheel Nut Set MS212-00007 1 32,000 △ △ For 1 vehicle - Wheel nut set（With security）

○・・・Applicable
△・・・Applicable depending on the vehicle condition stated on remarks


※1：Drilling to the body/bumper or resin product will be required when installing.
※2：Ground Clearance 20mm lower then original
※3：Ground Clearance 25mm lower then original
※4：Ground Clearance 30mm lower then original
※5：Ground Clearance 55mm lower then original
"※6：eparate genuine wheel center cap (recommendation : ""F Sport Use"") will be required for installation.
Standard equipped genuine Wheel Center Cap (""F SPORT"" use) can be used."
※7：Separate TPMS bulb will be required for installation. Standard equipped TPMS bulb can be used.
※8：This product do not include tire.
※9：TPMS bulb are installed.


GS450h/GS300h Parts List
Description Part Number Qty. List Price GS300h/GS450h Remarks
F　SPORT version　L
I　package
Normal
Front Spoiler　※1※2 MS341-30013-A1 1 72,000 ○ 　 White Nova Glass Flake (083)
MS341-30013-C0 1 72,000 ○ 　 Black (212)
MS341-30013-C3 1 72,000 ○ 　 Graphite Black Glass Flake (223)
MS341-30014-NP 1 68,000 ○ 　 Non-painted
Side Skirt　※1※3 MS344-30007-A1 1 88,000 ○ 　 White Nova Glass Flake (083)
MS344-30007-C0 1 88,000 ○ ○ Black (212)
MS344-30007-C3 1 88,000 ○ ○ Graphite Black Glass Flake (223)
MS344-30008-NP 1 83,000 ○ ○ Non-painted
Rear Spoiler　※1 MS342-30007-A1 1 50,000 ○ 　 White Nova Glass Flake (083)
MS342-30007-C0 1 50,000 ○ ○ Black (212)
MS342-30007-C3 1 50,000 ○ ○ Graphite Black Glass Flake (223)
MS342-30008-NP 1 45,000 ○ ○ Non-painted
Frotn Aero Spats　※1※4 MS349-30000 1 10,000 ○ ○ 　
Performance Damper MS303-30003 1 50,000 ○ ○ 　
Sports Muffler &
Rear Diffuser　※1※5　　　　　		 　 1 280,000 ○ ○ Sports Muffler & rear diffuser must be installed together
Can not be installed with genuine mud guard
Sports Muffler MS153-30006 1 180,000 ○ ○ Sports Muffler & rear diffuser must be installed together
Can not be installed with genuine mud guard
Rear Diffuser MS343-30011 1 100,000 ○ ○ Sports Muffler & rear diffuser must be installed together
Can not be installed with genuine mud guard
Color：Gray metallic、Applicable for all body color
【A】19 inch Forged Alloy Wheel &
Security Nut Set
※6※7※8　　　		 　 1 530,000 ○ ○ 　
For FR (Qty.1) MS213-00096 1 122,000 ○ ○ Qty.1　19x8.5J　(inset 45)　11.7kg　
Recommended Tire Size：245/40R19
For RR (Qty.1) MS213-00097 1 127,000 ○ ○ Qty.1　19x9.0J　(inset 52)　11.8kg　
Recommended Tire Size：265/35R19
Wheel Nut Set MS212-00007 1 32,000 ○ ○ For 1 vehicle - Wheel nut set（With security）
【B】19 inch Forged Alloy Wheel &
Security Nut Set
※6※7※8　　　		 　 1 512,000 ○ ○ 　
For FR (Qty.1) MS213-00038 2 120,000 ○ ○ Qty.1　19x8.0J　(inset 45)　9.3kg　
Recommended Tire Size：245/40R19
For RR (Qty.1) MS213-00039 2 120,000 ○ ○ Qty.1　19x9.0J　(inset 52)　9.9kg　
Recommended Tire Size：265/35R19
Wheel Nut Set MS212-00007 1 32,000 ○ ○ For 1 vehicle - Wheel nut set（With security）

○・・・Applicable
△・・・Applicable depending on the vehicle condition stated on remarks


※1：Drilling to the body/bumper or resin product will be required when installing.
※2：Ground Clearance 20mm lower then original
※3：Ground Clearance 25mm lower then original
※4：Ground Clearance 30mm lower then original
※5：Ground Clearance 55mm lower then original
"※6：eparate genuine wheel center cap (recommendation : ""F Sport Use"") will be required for installation.
Standard equipped genuine Wheel Center Cap (""F SPORT"" use) can be used."
※7：Separate TPMS bulb will be required for installation. Standard equipped TPMS bulb can be used.
※8：This product do not include tire.
※9：TPMS bulb are installed.


【Handling Caution】

Please do not conduct any modification to the product or it may cause a serious accident or damage.
Please be noted that Garage Jack may not be able to use at specific position after installation.

<Aero Parts>
After installing the Aero Parts, the road clearance will narrow and may interfere with curb bump or slope on public road.
Also the Aero Parts may damage if driven during snow season (snowplow) or used under frozen weather.
Color of the installation parts may not completely match with the color of standard vehicle.

<Sports Muffler>
After installing the Sports Muffler, the road clearance will narrow and may interfere with curb bump or slope on public road.
Also the volume or performance may change. Due to the nature of the material, color of Sports Muffler may change by heat or the surface may become rusty.

<Suspension Parts>
Installing member brace and performance damper may change riding comfortability and steering stability.

<Aluminum Wheel>
- Installation of Aluminum Wheel may increase the driving sound or lower the draining level during rain and grip during snowing condition. Also driving comfortability or steering stability may differ from standard vehicle.
- Please be noted that tire chain may not be applicable.
- Tire may interfere or protrude if tire other than recommendation are installed.
- Wheel Nut Adapter (included in product) will be necessary if a tire is punctured. Please make sure to carry on-board.(Without security)
- Socket for lug nut and security lock nut (included in product) will be necessary if a tire is punctured. Please make sure to carry on-board. (With security)
- If the spare tire is with standard aluminum wheel, a standard wheel nut will be necessary. Please make sure to carry on-board.
- For cleaning matt finished colored wheel, use soft cloth or sponge with detergent or car shampoo with lots of water. Lightly wipe off the moisture using chamois leather or cloth after cleansing.
